D-Sub male connectors

Fiber optic D-Sub male connectors

We are able to supply pre-assembled D-Sub female connectors with suitable emitter and receiver diodes in addition to our product range of emitter and receiver devices with standard ports.

The following list up presents a brief overview of suitable passive D-Sub male connectors.

Design types	Description

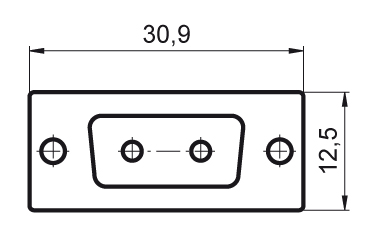

01	D-Sub male connector   can be equipped with 2 fiber end sleeves   905SDSTG01001

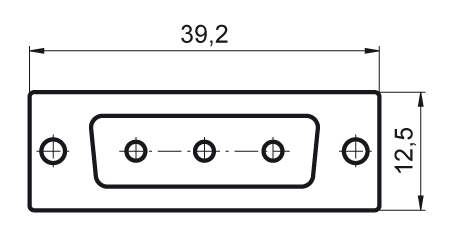

2B	D-Sub male connector   can be equipped with 3 fiber end sleeves   905SDSTG2B001

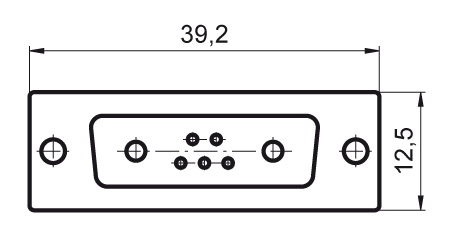

2C	D-Sub male connector   can be equipped with 2 fiber end sleeves   and 5 electrical contacts   905SDSTG2C001

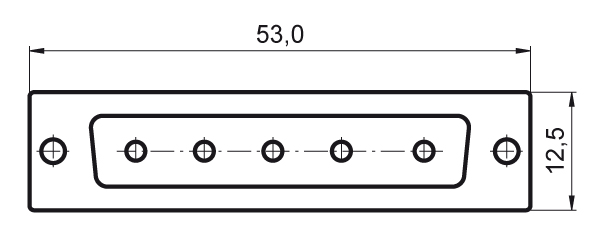

3E	D-Sub male connector   can be equipped with 4 fiber end sleeves,   with 5 electrical contacts     905SDSTG3E001

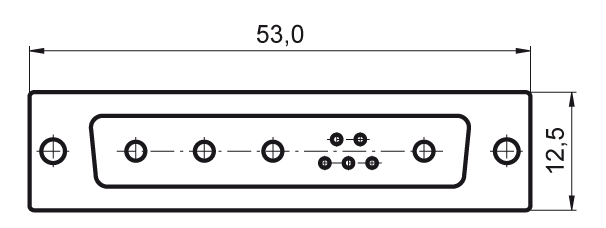

3F	D-Sub male connector   can be equipped with 5 fiber end sleeves     905SDSTG3F002

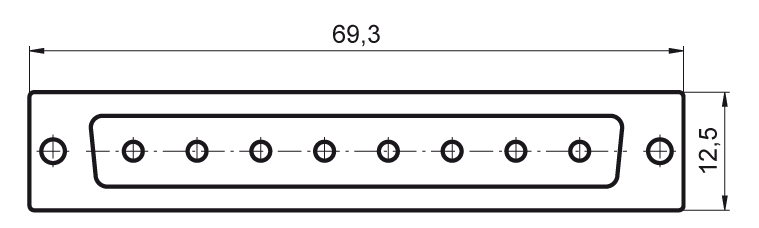

4K	D-Sub male connector   can be equipped with 8 fiber end sleeves   905SDSTG4K001

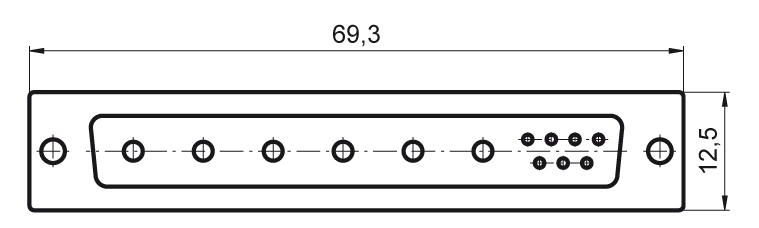

4L	D-Sub male connector   can be equipped with 6 fiber end sleeves,   with 7 electrical contacts   905SDSTG4L001

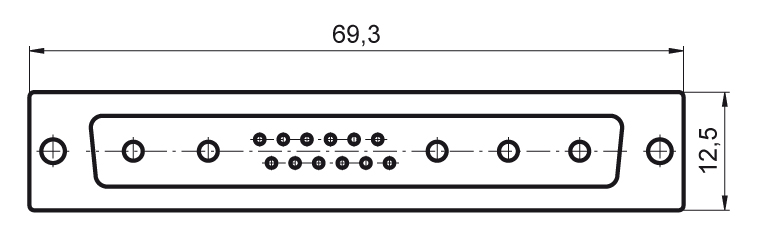

4M	D-Sub male connector   can be equipped with 5 fiber end sleeves,   with 12 electrical contacts   905SDSTG4M001
