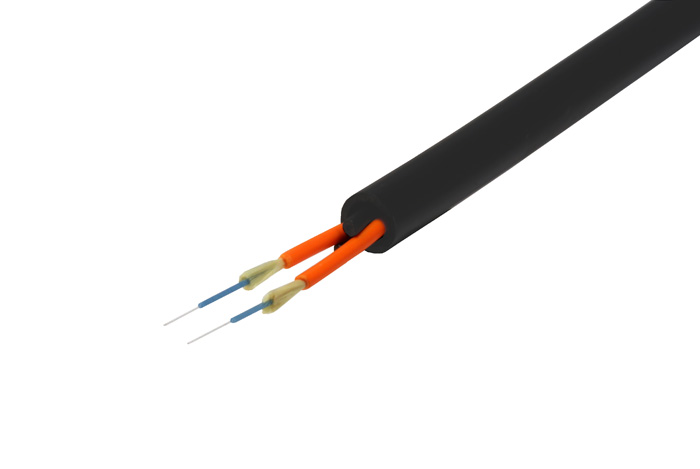

Glass opitcal cable 62.5/125µm duplex, break out cable, PVC outer jacket black, outer diameter 9.5mm, drag chain useable
The rugged cable with individual subcables is designed for outdoo and indoor installations and is suitable for installations in harsh industrial environment as well. The excellent optical and mechanical properties make the cable the best choice for data transmission.
 |
|
Outer diameter
|
cable
9.5mm
subcable
2.5mm
|
| Cladding diameter |
125 µm |
| Core diameter |
62.5 µm |
Buffer tube
|
outer jacket
PVC - polyvinylchloride, black
inner jacket
PVC - polyvinylchloride, orange |
Type designations
|
AT-V(ZN)YY 2G62.5/125 STB900 2,5 |
Number of fibers
|
2
|
Operating temperature
|
-20 to +80°C
|
| Data sheet |
 |
| Ordering information |
93FAGVN00620902SW-PE |
| Additional information |
- resistance against fuels, petroleum/lubricants, acids and alkaline solutions
- flame-retardant
- DIN VDE 0888-5 and IEC 60794-2 |
