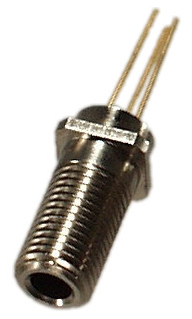

Optical receiver 850nm, metal insertion flange with F-SMA port, including nut and washer
The receiver consists of a photo diode with integrated TIA and a TTL compatible "open collector" output. The receiver is fully DC coupled and does not require an encoded input signal. The receiver is especially appropriate for fiber optic applications up to 200µm fiber diameter.
 |
|
Transfer rate
|
200kBit/s |
| Wavelength |
850nm
|
| Operating voltage |
4.5 to 16 V |
| Switching times |
300ns/100ns |
| Optical port |
F-SMA
|
| Housing type |
metal
|
| Dimensions |
15.2 x 7.0 x 7.0 mm (LxWxH)
|
| Accessories |
911M1436UNS2A Hexagonal nut F-SMA, 1/4-36 UNS 2A
911F1436UNS01 Washer F-SMA
904DTSTSSM011 Dust protection cap red |
Data sheet
|
on request |
| Ordering information |
905EM850EK004
including fixing accessories
|
| Additional information |
-
|
