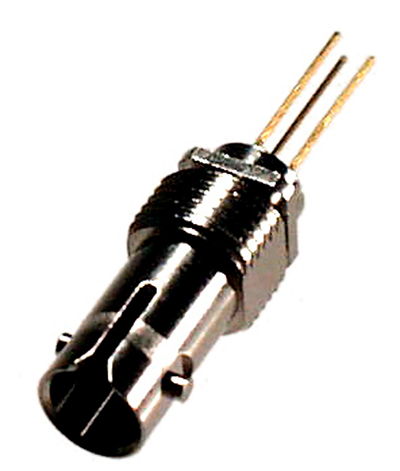

Optical receiver 850nm, metal insertion flange with F-ST port, including nut, washer and locking washer
The receiver consists of a photo diode with integrated TIA. The receiver is especially appropriate for fiber optic applications with high signal bandwidth.
 |
|
Transfer rate
|
155MBd |
| Wavelength |
850nm
|
| Operating voltage |
4.75 to 5.45 V |
| Switching times |
3.3ns/3.3ns |
| Optical port |
F-ST
|
| Housing type |
metal
|
| Dimensions |
33.8 x 7.6 x 7.0 mm (LxWxH)
|
| Accessories |
911M3832UNE2A Hexagonal nut F-ST 3/8-32 UNEF 2A
911F3832UNE01 Washer F-ST
CST0003999030 Locking washer 7,0 DIN6799 spring steel
904DTSTSST013 Dust protection cap black
|
Data sheet
|
on request |
| Ordering information |
905EM850EKST6
including fixing accessories
|
| Additional information |
-
|
