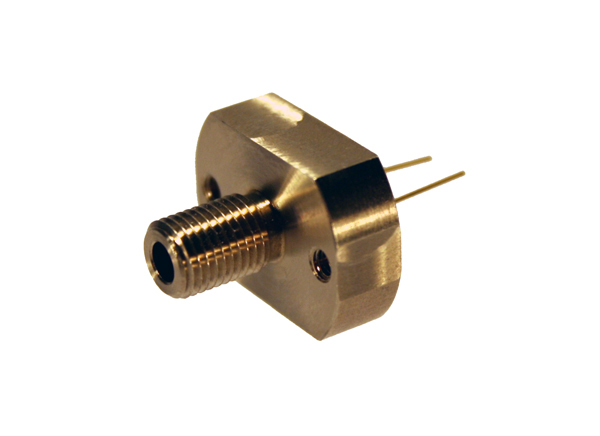

Optical receiver Si.-Pin-diode F-SMA port metal receptacle T05 straight mounting version
The receiver is especially appropriate for fiber optic applications up to 1 mm fiber diameter. The receiver consists of a fast PIN photo diode with a spectral bandwidth from 400nm to 1100nm. The high performance of the diode makes this receiver a good choice in data transmission systems with glass or plastic fibers.
 |
|
Bandwidth
|
- |
| Wavelength |
400...1100nm
|
| Operating voltage |
- |
Switching times
|
20ns/20ns |
| Optical port |
F-SMA
|
| Housing type |
metal
|
| Dimensions |
15.2 x 19.5 x 14.0 mm (LxWxH)
|
| Accessories |
904DTSTSSM011 Dust protection cap red |
| Data sheet |
on request |
| Ordering information |
905EMPINSM601
|
| Additional information |
-
|
