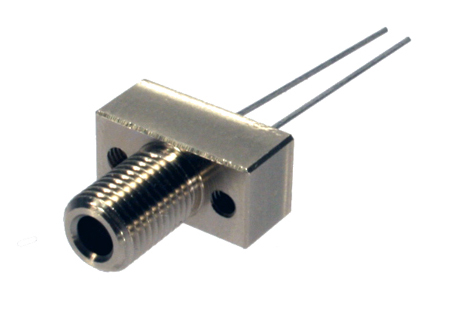

Analogue optical emitter 850nm F-SMA port metal receptacle, straight mounting version
This active component is especially suitable for applications with multi-mode optical fibres ranging from 50/125 µm to 200/230 µm. Assembled with a fast 850 nm LED capable of a high optical output power, the component makes a prime alternative solution in optical data transmission systems applying multi-mode optical fibers.
 |
|
Bandwidth
|
85MHz |
| Wavelength |
850nm
|
| Operating voltage |
- |
Switching times
|
- |
| Optical port |
F-SMA
|
| Housing type |
metal
|
| Dimensions |
15.2 x 14.0 x 7.0 mm (LxWxH)
|
| Accessories |
911SLM2506001 Cross recessed cheese-head screw M2.5x6
904DTSTSSM011 Dust protection cap red |
| Data sheet |
on request |
| Ordering information |
905SE850SM701
|
| Additional information |
-
|
