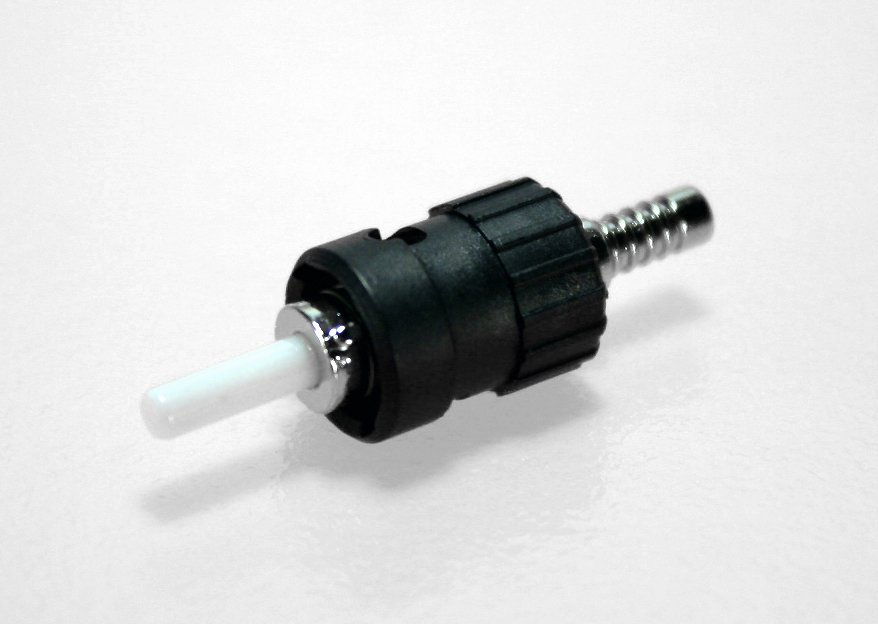

FO Connector F-ST for 50/125µm multi-mode, zirconia ferrule and plastic bajonet lock
The FO connector style F-ST is optimized in particular for applications using multi-mode glass optical fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
|
|
Connector type |
F-ST |
Ferrule type |
zirconia, multi-mode
|
Outer diameter |
2.5 mm |
Inner diameter |
125µm |
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
Accessories |
902SSSTSST001 Dust protection cap red 902KT03250001 Protective rubber sleeve black for cable diameter 3.2mm 902KT02226001 Protective rubber sleeve black for cable diameter 2.2mm 910FRW0100001 Scriber for glass fiber HST0032000010 Crimp sleeve 910AB00118001 Wire stripper 0.18mm 910AB00130001 Wire stripper 0.3mm 910CZ00100008 Crimping plier hexagonal 9102KKFERTIG1 Two-component epoxy mix 910SPRITZ0001 One-way syringe with needle 910PB00105001 Polishing film 5μm 910PB00100301 Polishing film 0.3μm 910AO00100001 Heat oven for glass fiber assembly 910PS0ST00001 Polishing disc 910MIKRO10002 Inspection microscope (100x) 910MIADAST002 Microscope adapter
|
Data sheet |
|
Ordering information |
902SS125ST001 including protective rubber sleeve cable diameter max. 3.0mm and crimp sleeve
902SS125ST003 including protective rubber sleeve diameter max. 2.2mm and crimp sleeve
|
Additional information |
- |
