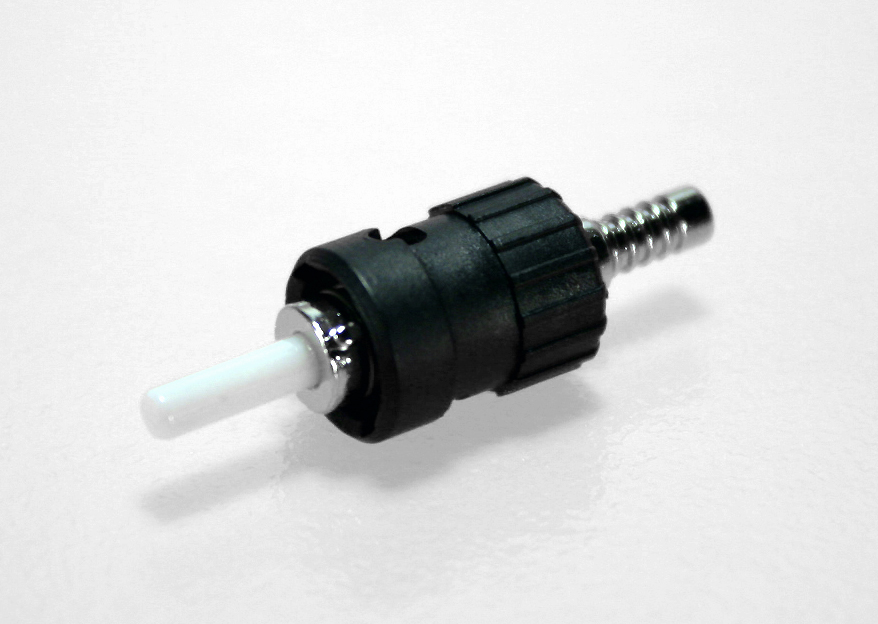

FO connector F-ST for 9/125µm single-mode with zirconia ferrule, including crimp sleeve and protective rubber sleeve for cable diameter 3.0mm
The FO connector style F-ST is optimized in particular for applications using multi-mode glass optical fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
F-ST |
| Ferrule type |
zirconia, single-mode
|
| Outer diameter |
2.5 mm |
| Inner diameter |
125µm |
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
| Accessories |
902SSSTSST001 Dust protection cap red
902KT03250001 Protective rubber sleeve black for cable diameter 3.2mm
910FRW0100001 Scriber for glass fiber
HST0032000010 Crimp sleeve
910AB00118001 Wire stripper 0.18mm
910AB00130001 Wire stripper 0.3mm
910CZ00100008 Crimping plier hexagonal
9102KKFERTIG1 Two-component epoxy mix
910SPRITZ0001 One-way syringe with needle
910PB00105001 Polishing film 5μm
910PB00100301 Polishing film 0.3μm
910AO00100001 Heat oven for glass fiber assembly
910PS0ST00001 Polishing disc
910MIKRO10002 Inspection microscope (100x)
910MIADAST002 Microscope adapter
|
| Data sheet |
 |
| Ordering information |
902SS125ST090
|
| Additional information |
- |
