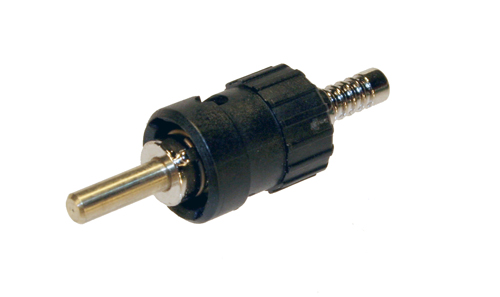

FO connector F-ST for 200/230µm PCF with metal ferrule and metal locking nut, including crimp sleeve and protective rubber sleeve
The FO connector style F-ST is optimized in particular for applications using 200/230µm PCF fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
F-ST |
| Ferrule type |
metal, PCF
|
| Outer diameter |
2.5 mm |
| Inner diameter |
235µm |
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
| Accessories |
902SSSTSST001 Dust protection cap red
902KT03250001 Protective rubber sleeve black for cable diameter 3.2mm
910AB00100001 Fiber stripper
910PS0ST00001 Polishing disc
910PB00100001 Polishing film, grain size 1000
|
| Data sheet |
 |
| Ordering information |
902SS230ST002
including protective rubber sleeve black, cable diameter 3.0mm
902SS230ST003
including protective rubber sleeve red, cable diameter 3.0mm
902SS230ST052
including protective rubber sleeve black, cable diameter 5.0mm
|
| Additional information |
- |
