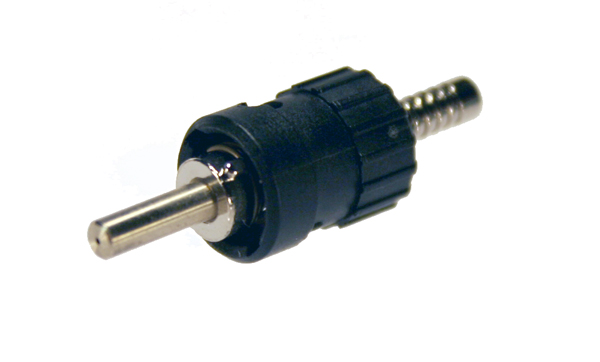

FO connector F-ST for 400/430µm PCF with metal ferrule and metal locking nut, including crimp sleeve and protective rubber sleeve
The FO connector style F-ST is optimized in particular for applications using 400/430µm PCF fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
F-ST |
| Ferrule type |
metal, PCF
|
| Outer diameter |
2.5 mm |
| Inner diameter |
440µm |
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
| Accessories |
910CZ00100008 Crimping plier hexagonal
910AB00130001 Wire stripper 0.3mm
910FRW0100001 Cleaving tool
9102KKFERTIG1 2-component epoxy mix
910SPRITZ0001 One-way syringe with needle
910PB00105001 Polishing film 5µm
910PB00101001 Polishing film 1µm
910AO00100001 Heat oven for glass fiber assembly
910PS0ST00001 Polishing disc
910MIKRO10002 Inspection microscope (100x)
910MIADAST002 Microscope adapter
|
| Data sheet |
on request |
| Ordering information |
902SS430ST002
|
| Additional information |
- |
