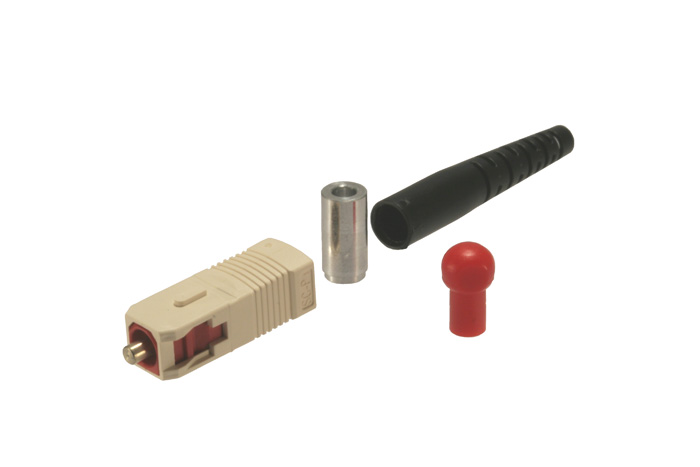

FO connector SC metal ferrule for 200/230µm PCF cable, crimp sleeve and protection boot for cable diameter 3.0mm
The FO connector style SC is optimized in particular for applications using 200/230µm PCF demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics. By using a duplex adapter the connector can be a duplex SC standard version connector.
 |
|
| Connector type |
SC |
| Ferrule type |
metal, PCF
|
| Outer diameter |
2.5 mm |
| Inner diameter |
235 µm |
Protection class
|
-
|
Assembly type
|
crimping
|
| Accessories |
910AB00130001 Wire stripper 0.3mm
910CZ00100008 Crimping plier hexagonal
9102KKFERTIG1 Two-component epoxy mix
910SPRITZ0001 One-way syringe with needle
910PB00105001 Polishing film 5μm
910PB00100301 Polishing film 1μm
910AO00100001 Heat oven for glass fiber assembly
910PS0SC00001 Polishing disc
910MIKRO10002 Inspection microscope (100x)
910MIADAST002 Microscope adapter
|
| Data sheet |
 |
| Ordering information |
902SS230SC033
SC connector simplex
902SD230SC033
SC connector duplex
|
| Addtional information |
By using a duplex adapter the connector can be a duplex SC standard version connector |
