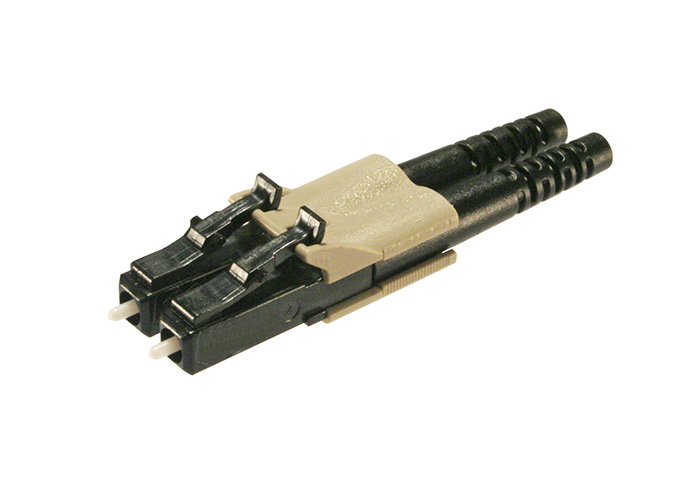

FO connector LC duplex zirconia ferrule for 50/125µm glass optical fiber cable OM3, diameter 2.5mm, including bend protection and crimp sleeve
The FO connector style LC is optimized in particular for applications using 50/125µm multimode glass optical fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
LC |
| Ferrule type |
zirconia, glass optical fiber multi-mode OM3
|
| Outer diameter |
1.25 mm |
| Inner diameter |
125 mm |
Protection class
|
-
|
Assembly type
|
crimping and pasting
|
| Accessories |
910FRW0100001 Scriber for glass fiber
910AB00118001 Wire stripper 0.18mm
910AB00130001 Wire stripper 0.3mm
910CZ00100008 Crimping plier hexagonal
9102KKFERTIG1 Two-component epoxy mix
910SPRITZ0001 One-way syringe with needle
910PB00105001 Polishing film 5μm
910PB00100301 Polishing film 0.3μm
910AO00100001 Heat oven for glass fiber assembly
910PS0ST00001 Polishing disc
910MIKRO10002 Inspection microscope (100x)
910MIADAST002 Microscope adapter
|
| Data sheet |
on request |
| Ordering information |
902SD125LC001
|
| Addtional information |
- |
