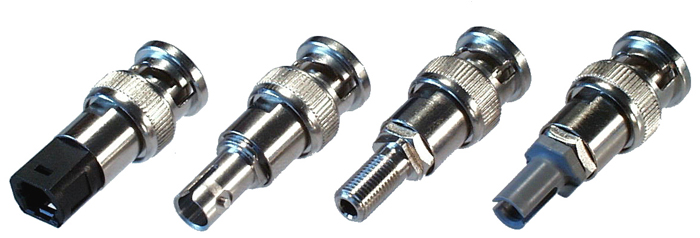

Various system adapter for signal generator MS100HU 660nm
The adapter series is especially suitable for inspections and tests at assembled multi-mode fiber optic cables with core diameters from 980µm in combination with the signal generator MS100HU (part-no.: 909MS 000 00111). The BNC thread of the adapter ensures a vibration-proof connection with the generator. Simoultaneously the fiber end face of the assembled cable is led into an optimal position to the LED transmitter. By this optimal position a very good accuracy is given also with frequent change of the adapter. Designed to operate with the signal generator MS100HU, the adapter fits on every function- or pulsgenerator with 50 Ohm output impedance.
 |
|
Suitable for
|
909MS00000111 MS100HU
|
| Wavelengths |
660nm |
Data sheet
|
|
| Ordering information |
909MS660SM001 660nm LED F-SMA
909MS660ST001 660nm LED F-ST
909MS660T155K 660nm LED F-05
909MS660HF006 660nm LED HFBR4501/4511
909MS660FE001 660nm LED Fiber end sleeve
909MS660SR001 660nm LED SC-RJ
Additional adapter are available on request.
|
